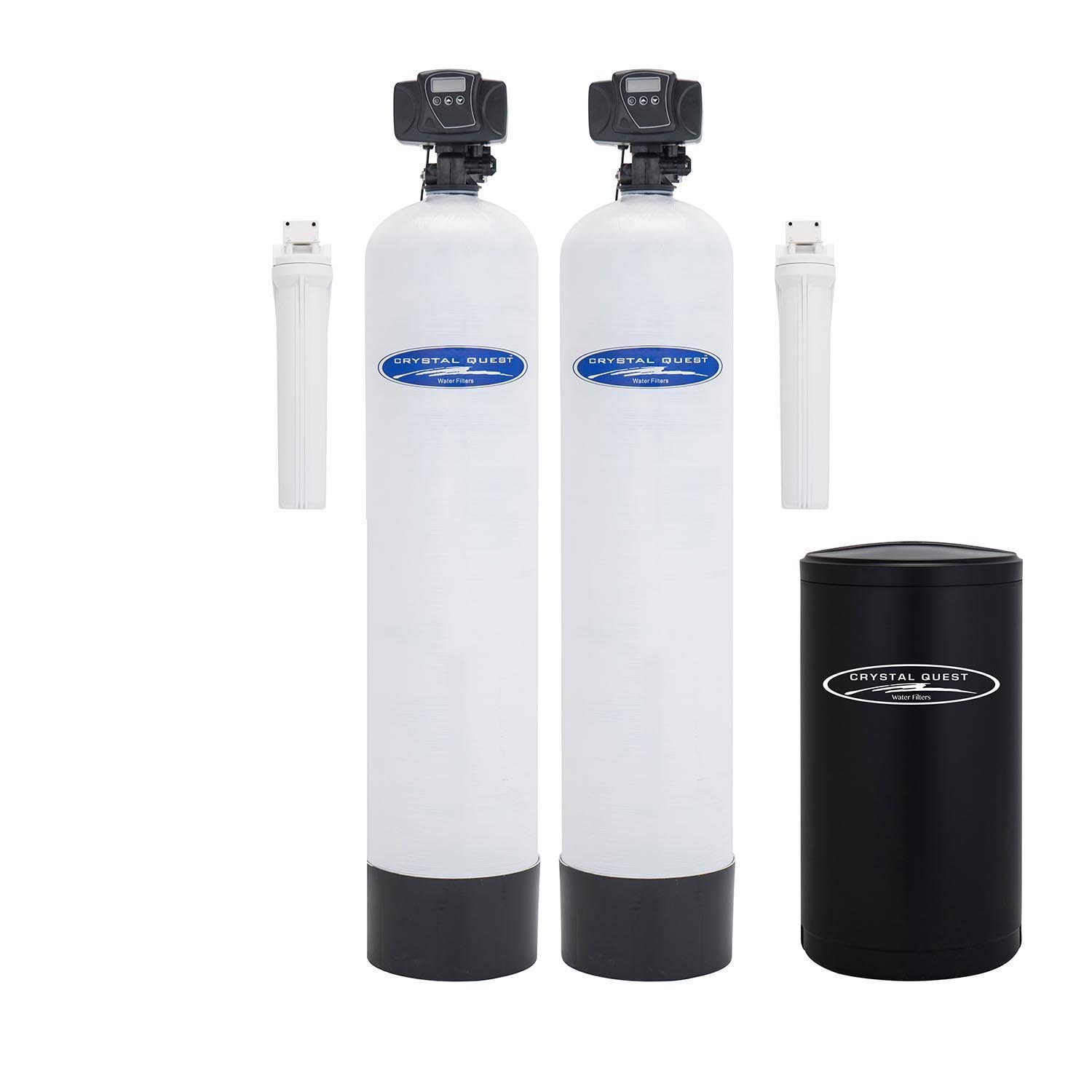

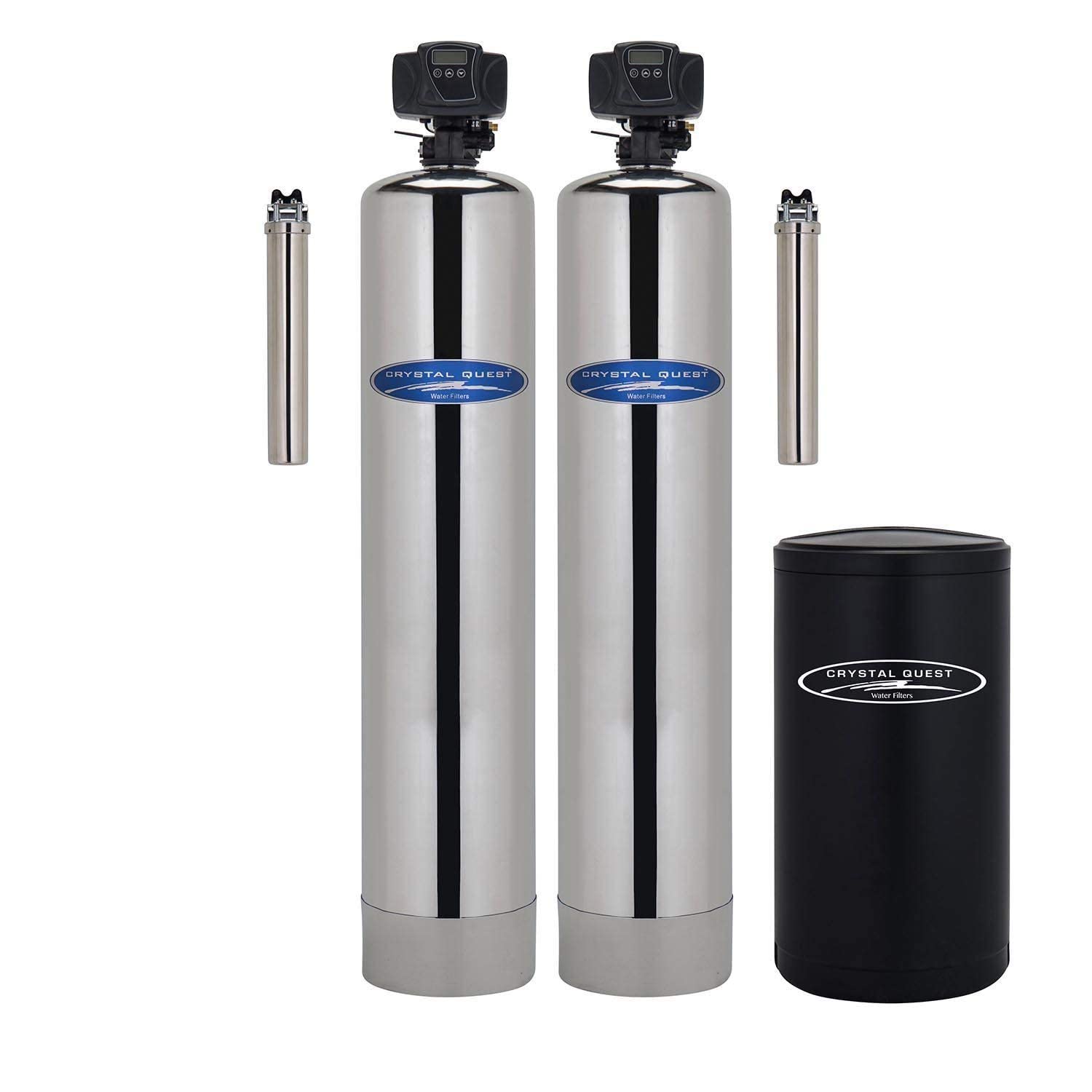

Tannin Removal Softener Filter

DescriptionWater Travels Through 4 Stages of Filtration

• Stage 1: Water flows through a 20" sediment cartridge that removes sediment, silt, sand, and dirt.
• Stage 2: Water flows through a tannin-reducing mineral tank.
• Stage 3: Water flows through an ion exchange mineral tank and brine water conditioner.
• Stage 4: Water flows through a 20" solid carbon filter cartridge for removing volatile organic compounds (VOCs), and industrial solvents.*

Crystal Quest Tannin Water Filters are self-backwashing systems that automatically remove the tannins within the filter bed and washes them down the drain. This is accomplished with the microprocessor control valve that is mounted on top of the Crystal Quest Tannin Water Filters. This valve is controlled by a meter that calculates the amount of water being used. Once the meter reaches x amount of gallons, it then initiates the backwash cycle that cleans the bed of filtration media and resets it for the next period of filtration.These systems connect to the main line of your home and filters all of the incoming water to it. It requires a nearby power outlet for the control valve. Low maintenance. Just add sodium or potassium pellets to the brine tank.

• Approx. Gallons of water to Regenerate: 40
• Maximum Removal Capacities: 5ppm Tannins and 40 grains hardness
• Maximum Iron and Manganese Levels: Combined Manganese and Iron levels must be below 0.2ppm
